Performance and characteristic of PEX series fine jaw crusher
*Simple structure and reliable operation;
*Convenient maintenance and low operation cost;
*Jaw Crusher is of various types.
*Jaw Crusher is suitable for crushing maximum, medium and minimum stones.
*The operating principle of Jaw Crusher is easy to be operated.
*The structure of Jaw Crusher is simple and it is easy to maintain.
PEX series fine jaw crusher application
PE series is used in primary crushing. As everybody knows, the main disadvantage of jaw crusher is that lifetime of jaw plates is short. In order to solve this problem, our company has developed special material for it.
PEX series fine jaw crusher working principle

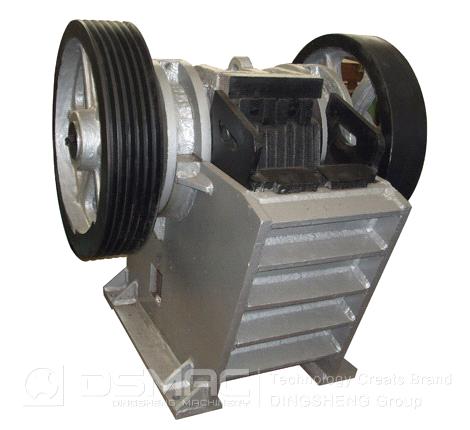

This crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.
PEX series fine jaw crusher technical parameters *Simple structure and reliable operation;
*Convenient maintenance and low operation cost;
*Jaw Crusher is of various types.
*Jaw Crusher is suitable for crushing maximum, medium and minimum stones.
*The operating principle of Jaw Crusher is easy to be operated.
*The structure of Jaw Crusher is simple and it is easy to maintain.
PEX series fine jaw crusher application
*PE Jaw Crusher has the features of great crushing ratio, uniform sizes of products.
*It can be used to crush material that compressive resistance not more than 320 Mpa.
*It is widely used in various industries, such as mining, smelting, road and railway construction and chemical industry etc.
*It can be used to crush material that compressive resistance not more than 320 Mpa.
*It is widely used in various industries, such as mining, smelting, road and railway construction and chemical industry etc.
PE series is used in primary crushing. As everybody knows, the main disadvantage of jaw crusher is that lifetime of jaw plates is short. In order to solve this problem, our company has developed special material for it.
PEX series fine jaw crusher working principle
This crusher adopts the electric motor as the power. The eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw following the preconcerted path to crush the feeding material. Thus the material will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. The material is discharged from the lower part of machine that is what you want.
Large fine jaw crusher main models technical parameters
| Specification model | Technical feature | Motor capacity (kw) | Overall dimensions (length× wide× high) (mm) | weight (kg) | |||
| Maximum feeding granularity (mm) | Adjustment range (mm) | Production capacity (m³ /h) | Speed of mainshaft (r/min) | ||||
| PEX150× 750 | 120 | 18-48 | 5-16 | 320 | 15 | 1220× 1480× 1180 | 3500 |
| PEX250× 750 | 210 | 25-60 | 8-22 | 300 | 22 | 1400× 1617× 1412 | 4900 |
| PEX250× 1000 | 210 | 25-60 | 10-32 | 330 | 37 | 1580× 1992× 1380 | 6600 |
| PEX250× 1200 | 210 | 25-60 | 13-38 | 330 | 37 | 1530× 2192× 1380 | 7700 |
| PEX300× 1300 | 250 | 20-90 | 10-65 | 300 | 75 | 1930× 2400× 1747 | 10500 |
