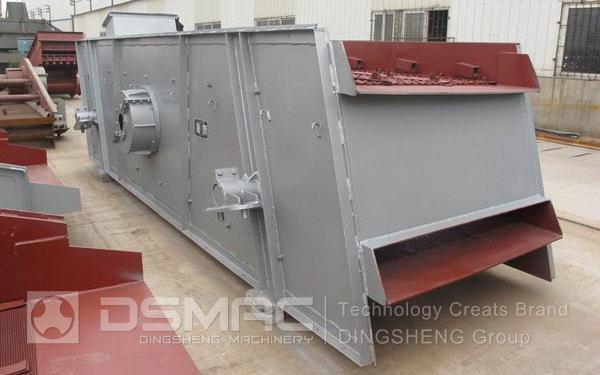

ISO9001 Circular Vibrating Screen(YK Series ) Introduction
Equipped with abundant knowledge, unique technology of combined vibrating equipment experience, zhengzhou dingsheng engineering technology company is continuously developing new and improved circular vibrating screen products to keep up with the ever-changing demands of both the aggregate and mining industries.
Equipped with abundant knowledge, unique technology of combined vibrating equipment experience, zhengzhou dingsheng engineering technology company is continuously developing new and improved circular vibrating screen products to keep up with the ever-changing demands of both the aggregate and mining industries.
We possess perfect after-sales service system, provide lifelong technical service and supply spare parts in full . There are relating engineering technical experts who provide prefect services no matter what process design, equipment installation and quick-wear part replace and other supports
ISO9001 Circular Vibrating Screen(YK Series ) Features
1. Advanced ring grooved Lockbolt coupling, structure, featuring sturdy and durable
2. Adopt flexible connection of tire coupling, featuring stable operation
3. High-tensile bolt joined the crossbeam and sieve box together, featuring simple structure and easy maintenance
4. Advanced structure design, effective vibrator with eccentric block provide powerful excitation force, featuring energy saving and low noise.:
5. Designed with high frequency, smaller amplitude,large angle stable structure, featuring high screening efficiency and large throughput.
5. Designed with high frequency, smaller amplitude,large angle stable structure, featuring high screening efficiency and large throughput.
6. vibrator equiped with ample clearance bearings,thin oil lubrication featuring low noise and long service time.
7. Varied types and collocations satisfy screening requirements from various industries perfectly.
8. Spare parts with strong generality, featuring convenient maintenance.
ISO9001 Circular Vibrating Screen(YK Series ) Working Principle
The screen uses common motor to drive high-speed rotating vibration exciter and eccentric block that could provide powerful centrifugal forces,
the forces make the screen box keep a mandatory and continuous circular motion, the materials are thrown constantly on sloping screen surface, continually flip and loose, fine materials would be moved to lower site, and then will be discharged through the sieve. The materials blocked in the sieve could jump out by themselves forced by vibrating, sieve clogging are prevented. Classification and filtering are well done by this cycle process.
ISO9001 Circular Vibrating Screen(YK Series ) Application
Circular vibrating scren is a multilayer and high efficient new-type screen with international level. long flowing line, many screening specifications, high screening efficiency, it’s specially designed for screening mineral stones at the working site.
It is widely used for grading and screening materials in the following fields: mines, quarries, aggregate, high-way construction, building materials, chemical industry, metallurgy and so on.
ISO9001 Circular Vibrating Screen(YK Series ) Technical parameter
| Type | No.of Deck | Screen slope angle (°) | Sieve Mesh (mm) | Sieve Area (m2) | vibrating frequency (r/min) | Double swing (mm) | Capacity (m3/h) | Motor power (kW) | Overall dimension (mm) | Weight (kg) |
| 2YK1224 | 2 | 15 | 5～50 | 2.88 | 970 | 6-8 | 20-120 | 5.5 | 2673×2382×2027 | 1750 |
| YK1235 | 1 | 15 | 5～50 | 4.2 | 970 | 6-8 | 20-150 | 5.5 | 3710×2464×1450 | 1729 |
| 2YK1235 | 2 | 15 | 5～50 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3705×2393×2339 | 2476 |
| 3YK1235 | 3 | 15 | 5～50 | 4.2 | 970 | 6-8 | 20-150 | 7.5 | 3621×2521×2581 | 3158 |
| 4YK1235 | 4 | 15 | 5～50 | 4.2 | 970 | 6-8 | 20-150 | 11 | 3510×2521×2830 | 4160 |
| YK1545 | 1 | 17.5 | 5～50 | 6.75 | 970 | 6-8 | 20-150 | 11 | 4904×3044×2179 | 3319 |
| 2YK1545 | 2 | 17.5 | 5～50 | 6.75 | 970 | 6-8 | 20-150 | 15 | 5042×3090×3165 | 5308 |
| 3YK1545 | 3 | 17.5 | 5～50 | 6.75 | 970 | 6-8 | 20-150 | 15 | 4972×3090×3395 | 5915 |
| 4YK1545 | 4 | 17.5 | 5～50 | 6.75 | 970 | 6-8 | 20-150 | 18.5 | 4915×3155×3804 | 7260 |
| YK1548 | 1 | 17.5 | 5～100 | 7.2 | 970 | 6-8 | 20-150 | 11 | 5190×3044×2186 | 3319 |
| 2YK1548 | 2 | 17.5 | 5～100 | 7.2 | 970 | 6-8 | 20-150 | 15 | 5265×3140×3208 | 5284 |
| 3YK1548 | 3 | 17.5 | 5～100 | 7.2 | 970 | 6-8 | 20-150 | 15 | 5200×3090×3440 | 6186 |
| 4YK1548 | 4 | 17.5 | 5～100 | 7.2 | 970 | 6-8 | 20-150 | 18.5 | 5200×3155×3849 | 7284 |
| YK1860 | 1 | 20 | 5～100 | 10.8 | 970 | 6-8 | 32-350 | 15 | 6302×3365×2992 | 4651 |
| 2YK1860 | 2 | 20 | 5～100 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020×3455×3756 | 6195 |
| 3YK1860 | 3 | 20 | 5～100 | 10.8 | 970 | 6-8 | 32-350 | 18.5 | 6020×3455×4180 | 7613 |
| 4YK1860 | 4 | 20 | 5～100 | 10.8 | 970 | 6-8 | 32-350 | 22 | 5963×3505×4463 | 8650 |
| YK2160 | 1 | 20 | 5～100 | 12.6 | 970 | 6-8 | 66-720 | 18.5 | 6302×3730×2992 | 4917 |
| 2YK2160 | 2 | 20 | 5～100 | 12.6 | 970 | 6-8 | 66-720 | 22 | 5966×3958×3975 | 6856 |
| 3YK2160 | 3 | 20 | 5～100 | 12.6 | 970 | 6-8 | 66-720 | 30 | 5966×3958×4400 | 9112 |
| 4YK2160 | 4 | 20 | 5～100 | 12.6 | 970 | 6-8 | 66-720 | 30 | 5966×3958×4780 | 11405 |
| YK2460 | 1 | 20 | 5～100 | 14.4 | 970 | 6-8 | 75-750 | 18.5 | 6302×4155×2992 | 5243 |
| 2YK2460 | 2 | 20 | 5～100 | 14.4 | 970 | 6-8 | 75-750 | 30 | 6027×4308×3975 | 8503 |
| 3YK2460 | 3 | 20 | 5～100 | 14.4 | 970 | 6-8 | 75-750 | 30 | 6027×4308×4400 | 10411 |
| 4YK2460 | 4 | 20 | 5～100 | 14.4 | 970 | 6-8 | 75-750 | 30 | 5966×4308×4780 | 12068 |
| 2YK2475 | 2 | 20 | 5～100 | 18 | 970 | 6-8 | 120-900 | 30 | 7812×4308×4642 | 10709 |
| 3YK2475 | 3 | 20 | 5～100 | 18 | 970 | 6-8 | 120-900 | 37 | 7718×4393×5033 | 13400 |
| 4YK2475 | 4 | 20 | 5～100 | 18 | 970 | 6-8 | 120-900 | 45 | 7718×4494×5361 | 15500 |
| YK3060 | 1 | 20 | 5～100 | 18 | 970 | 6-8 | 200-900 | 30 | 6302×4943×3108 | 14052 |
| 2YK3060 | 2 | 20 | 5～100 | 18 | 970 | 6-8 | 200-900 | 37 | 6207×4943×3985 | 17185 |
| 3YK3060 | 3 | 20 | 5～100 | 18 | 970 | 6-8 | 200-900 | 45 | 6207×4943×4485 | 19200 |
| 4YK3060 | 4 | 20 | 5～100 | 18 | 970 | 6-8 | 200-900 | 45 | 6207×4943×4785 | 21080 |
