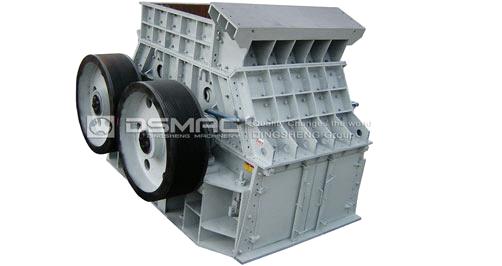

Single Stage Hammer Crusher (DPC 2022 )

Description

Single Stage Hammer Crusher Introduction

The DPC series of single stage hammer crusher is one of our leading products. It is used for crushing raw materials that have compressive strength less than 150MPa such as limestone, marl, sandstone, gypsum, coal, etc. The single stage hammer crusher can crush the ore block at the stope into the granularity required at a time. It can replace the traditional two-stage crusher and help simplify process flow, save infrastructure investment and production costs.



Single Stage Hammer Crusher Features

1. The enhancement rotor is designed with finite element analysis technology.

2. The WHM two-step method hard surface deposition technology increases the surfacing life by more than one time.

3. The AMC alloy hammerhead enjoys a service life increased by 50~150%.

4. The theory of stone hitting effectively reduces the wear load of hammerhead and grid plate.

5. The military high strength artillery steel spindle is designed with vacuum duplex which increases the strength by 3-4 times.

6. Single stage crushing largely simplifies the production process.

Technical Parameters

Type	Rotor Size (mm*mm)	Capacity (t/h)	Hammers Quantity	Feeding size (mm*mm)	Max Feeding Granularity (mm)	Discharging Granularity (mm)	Motor Power (kw)
DPC 1412	Φ1420*1194	80-150	28	1300*1320	500*500*800	90%≤25	200
DPC 1616	Φ1650*1630	150-220	32	1500*1785	800*800*900	90%≤25	355
DPC 1818	Φ1850*1730	240-400	40	1755*1780	800*800*1000	90%≤25	560
DPC 2018	Φ2018*1802	350-450	40	2040*1860	1000*1000*1000	90%≤25	710
DPC 2022	Φ2228*2460	400-600	50	2095*2380	1000*1000*1200	90%≤25	800
DLPC 2022-1	Φ2228*2460	600-800	50	2095*2380	1000*1000*1500	90%≤25	800
DLPC 2022-2	Φ2228*2460	700-900	50	2095*2380	1000*1000*1500	90%≤25	800
2DPC 1818	Φ1850*1890	800 -1000	40*2	2030*2080	1100*1100*1500	90%≤75	630*2
2DPC 2022	Φ2018*2237	1200 -1500	50*2	2670*2460	1000*1000*1500	90%≤75	800*2
2DPC 2325	Φ2300*2508	1600 -2000	66*2	3065*2666	1100*1100*1500	90%≤75	1125*2
