ISO9001 Fine Crusher (XPCF series)

Description

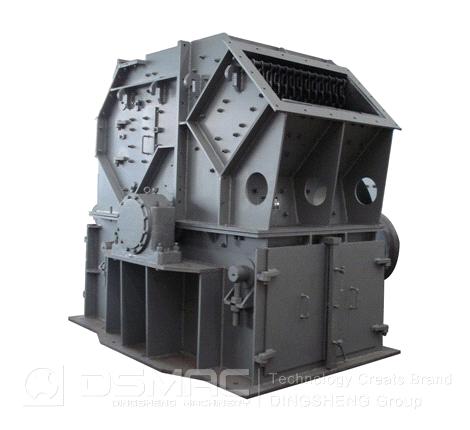

High Efficiency Fine Crusher
DSMAC has successfully designed and manufactured the newest high efficiency fine crusher. It is mainly used for fine crushing of sand-stone, sand making, and for crushing in cement factory, etc. The high efficiency fine crusher integrates the advantages of hammer crusher, impact crusher, etc. and is further improved in structure and materials.



The optimized crushing chamber improves fine crushing effects and enhances the unitarity of spare parts. The hammerhead is designed with tungsten and titanium alloy integrated structure and other special wear-resistant materials which greatly lengthen the service life of hammerhead. It is a high-tech product for which we have full intellectual property rights.



High Efficiency Fine Crusher Features:

1. High yield and the product is small in size.

2. Longer service life.

3. The space between impact plate and hammerhead can be adjusted.

4. The hydraulic device is convenient to maintain.

5. The distance between discharging grates and rotor can be adjusted. The facility enjoys steady discharging granularity.





Model:

XPCF20, XPCF 30, XPCF 40, XPCF 50, XPCF 60, XPCF 70, XPCF 80, XPCF 90, XPCF 100, XPCF 125, XPCF 150, XPCF 200, XPCF 250, XPCF 300, XPCF 400, XPCF 500

High Efficiency Fine Crusher Technical Parameters

Type	Rotor size(mm*mm)	Capacity (t/h)	Spindle speed (r/m)	Input size (mm)	Output size (mm)	Motor Power (kw)	Overall Dimension (L*W*H)
XPCF20	Φ800*400	15-20	813	120	4	30-37	1320*1529*1578
XPCF30	Φ800*600	20-30	813	120	4	37-45	1520*1529*1578
XPCF40	Φ900*600	30-40	807	150	5	37-45	2008*1478*1896
XPCF50	Φ900*700	40-50	807	150	5	45-55	2008*1578*1896
XPCF60	Φ900*900	50-60	807	150	5	55-75	1969*1777*1866
XPCF70	Φ1000*950	60-70	726	200	6	55-75	2337*2054*2167
XPCF80	Φ1000*1100	70-80	726	200	6	75-90	2337*2208*2167
XPCF90	Φ1000*1250	80-90	726	200	6	90-110	2337*2359*2167
XPCF100	Φ1250*1100	90-100	581	250	8	90-110	2915*2153*2480
XPCF125	Φ1250*1350	100-125	581	250	8	110-132	2915*2375*2480
XPCF150	Φ1250*1650	125-150	581	250	8	160-200	2915*2669*2480
XPCF200	Φ1600*1350	150-200	450	300	10	160-220	3178*2604*2810
XPCF250	Φ1600*1600	200-250	450	300	10	220-250	3174*2906*2809
XPCF300	Φ1800*1800	250-300	403	350	12	315-355	3788*3250*3100
XPCF400	Φ1800*2200	300-400	398	350	12	400-450	3862*3663*3500
XPCF500	Φ2000*2405	400-500	363	350	12	500-560	4141*4046*3774
