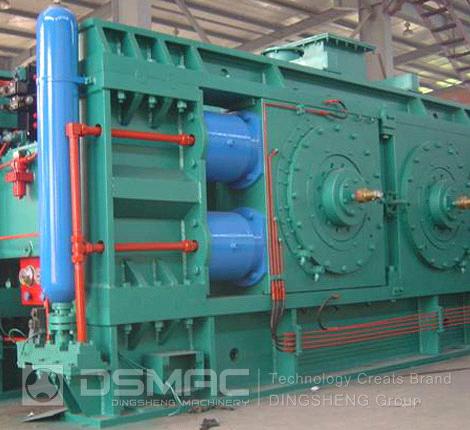

Roller Press

Description
Roller Press Introduction
With our unique and complete equipment and production technique, DSMAC has successfully designed and manufactured a roller crusher which is suitable for crushing techniques and raw materials conditions at home and abroad. Due to the efforts we have made to further research the process system and improve the reliability of main engine, the running rate of roller crusher system has come to the level of ball mill system. The mature roller crusher technology has injected new vitality to the grinding system.

Roller Press Features
1. The roller crusher can bring excellent material extrusion effects with large amounts of fine powder.
2. Advanced welding technology enables the roller crusher to have a service life of more than 8000 hours.
3. Forged with extrusion roller alloy steel as a whole, it has high loading capacity and reliable performance.


Model:
DSRP1003, DSRP1004, DSRP1006, DSRP1204, DSRP1205, DSRP1208, DSRP1406, DSRP1408, DSRP1410, DSRP1509, DSRP1614, DSRP1714, DSRP1816


Technical Parameters
Type Roller Diameter (mm) Roller width (mm) Main Motor Power (kw) Average/max feedstock Granularity (mm) Discharging Granularity (mm) Treatment Capacity (t/h) Weight (t) Dimensions (mm)
Length Width Height
DSRP1003 1000 300 160*2 25/40 65%≤2mm

25% ≤0.08mm
50-70 33 3835 4510 1885
DSRP1004 1000 400 200*2 25/40 65-90 36 4080 4600 1920
DSRP1006 1000 630 315*2 25/40 105 -145 55 4526 5280 2200
DSRP1204 1200 450 220*2 30/50 95-130 62 5500 4470 2340
DSRP1205 1200 500 250*2 30/50 140-165 64 5550 4620 2390
DSRP1208 1200 800 455*2 30/50 180-230 90 5608 5500 2460
DSRP1406 1400 650 455*2 35/60 225-290 104 7205 5440 2610
DSRP1408 1400 800 500*2 35/60 283-362 125 7400 5780 2610
DSRP1410 1400 1000 630*2 35/60 283-362 135 6400 8990 3000
DSRP1509 1500 900 710*2 35/60 340-460 163 6610 8860 3490
DSRP1614 1600 1400 1000*2 35/60 650-750 190 7000 9320 3980
DSRP1714 1700 1400 1250*2 40/70 710-830 240 7230 9420 4100
DSRP1816 1800 1600 1600*2 45/80 800-1000 278 8000 11100 4550
