Machine parameter:

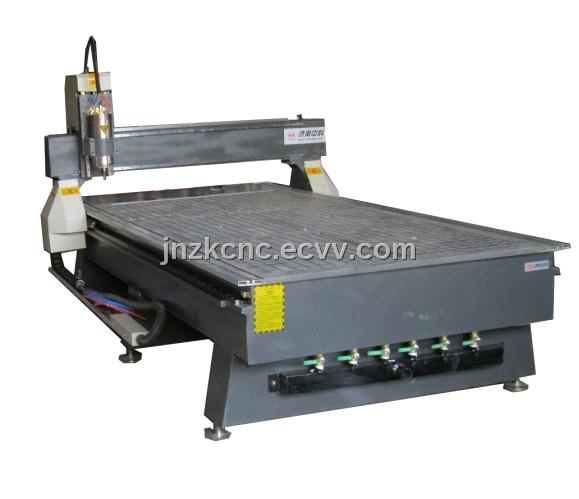

| CNC Router machine ZKM25-A | ||
| Items | parameters | |
| Working areas | X | 1300mm |
| Y | 2500mm | |
| Z | 200mm | |
| Transmission systems | X | Rack gear and pinion drive |
| Y | Rack gear and pinion drive | |
| Z | Ballscrew drive | |
| Guide rails system | X | Linear square rails |
| Y | Linear square rails | |
| Z | Linear square rails | |
| Spindle | Power | 3.0KW |
| Speed | 24000rpm | |
| Cooling type | Water cooling | |
| Origin | Jiangsu,China | |
| Drive systems | X | Stepper motor with driver |
| Y | Stepper motor with driver | |
| Z | Stepper motor with driver | |
| Servo motors and drivers | Made in China | |
| Fixtures | T slots table | |
| Machine body | Heavy structurer welded with big steel pipe | |
| Software envorionment | Windows98/2000/XP | |
| Control systems | DSP offline control system | |
| Compatible files format | G code;u00;mmg;plt | |
| Compatible software | UcancamV8/Type3/Artcam | |
| Working voltage | AC380V/50-60HZ 3Phase | |
| Table size | 1440*3040mm | |
| Max travel speed | 50m/min | |
| Max engraving speed | 50m/min | |
| Interface type | USB | |
| Dust absorption | Dust collector | |
| Processing materials | Wood,plastic,glass,metal,stone and so on | |
| Optional | Chinese aircooling spindle | |
Machine featurers:
Profiled steel welded lathe body .stabilizing treated under high tempreturer. Excellent rigidity and vigorous strength ability.
Y axis drived by double motors to ensure it's stability and powerful
High precision rack gear and pinion drive transmission system to ensure it's high working speed and strong power.
Imported taiwan HIWIN linear square rails with high precision,heavy work load and long service time.
Best machnical and electric parts design with well brand parts minimize breakdown rate.
